Features of TOMKOstage:
- standard platform dimensions: 2x1 m
- loading capacity: 750 kg/m²
- weight: 31 kg
- TUV Nord Certification
- minimizing the number of legs
- joining platforms and attaching legs in a single step
- height frame platform : 87 mm
-
made of hardened aluminum (EN-AW 6005 T6)
-
adjustable height of stage by leveling
- waterproof plywood with anti-slip surface: 12 mm
- 3-year warranty
Parameters:
- made of waterproof plywood with anti-slip surface and hardened aluminum frame
- TUV Nord Certification
- platform floor: 12 mm thick, dark brown Finnish plywood panel
- aluminum frame: height up to 8.7 cm (EN-AW 6005 T6)
- weight of a panel 2x1m: 31 kg
- max. load 750 kg / m²
- adjustable legs-length by leveling
- joining of segments and attaching legs in a single step
- minimizing the number of legs
- outdoor use (protect against intensive sunshine and adverse water)
- possibility of adding supplementary accessories as rails, adjustable legs or stairs
-
3-year warranty
VARIABILITY OF SHAPES
Variety of shapes and tailored solutions
REDUCING NUMBER OF LEGS
Connecting up to 4 stage decks with a single leg.
Stage meets legs only through the aluminium frame so the plywood board is protected against damage.
LEG IS A MULTIPURPOSE COMPONENT
A leg can be used for attaching stairs, safety rails and bracing to the stage.
CONNECTION
TOMKOstage system offeres quick stages assembly. Joining of decks and attaching legs is done in a single step.
ATTACHING STAGE RAILS
Fast and easy attachment using the rail support bolt.
VERSATILITY OF TOMKOstage
You do not need many accessories to plan a layout of your stage variations.
Components

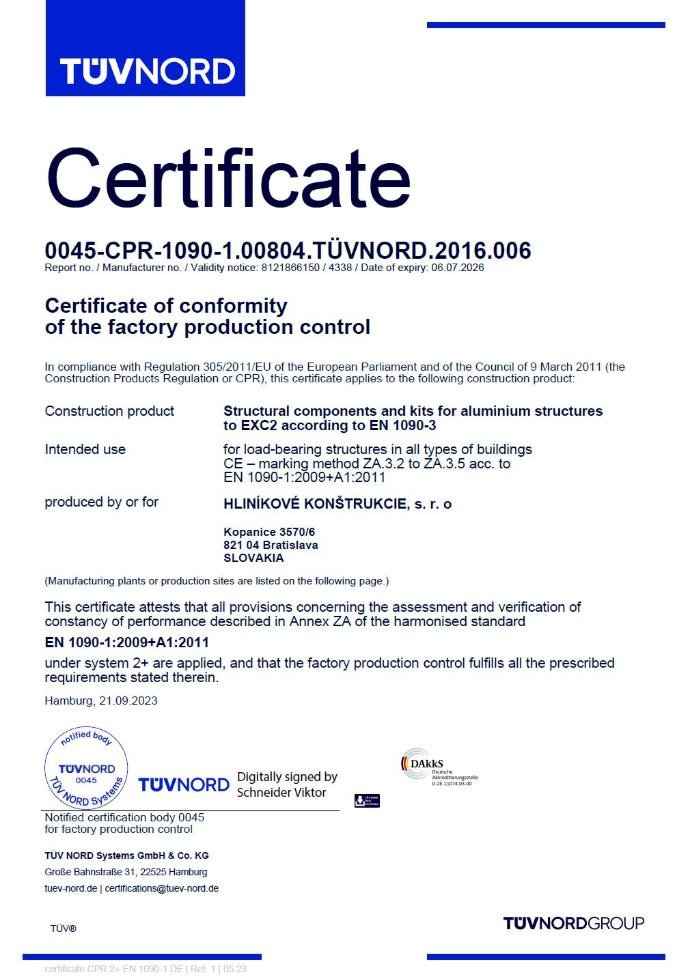

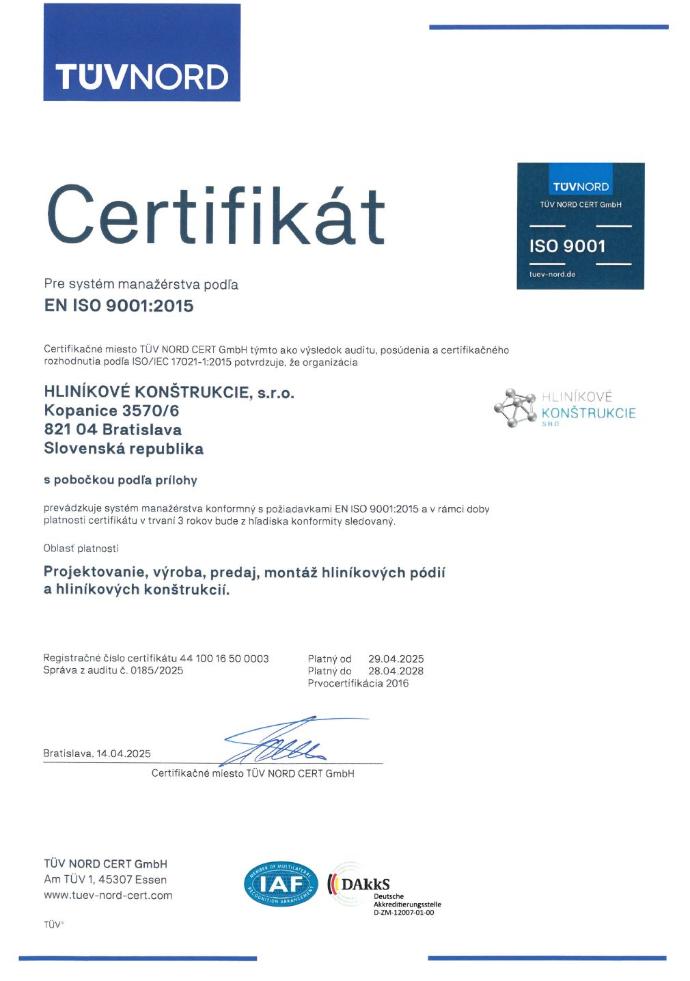

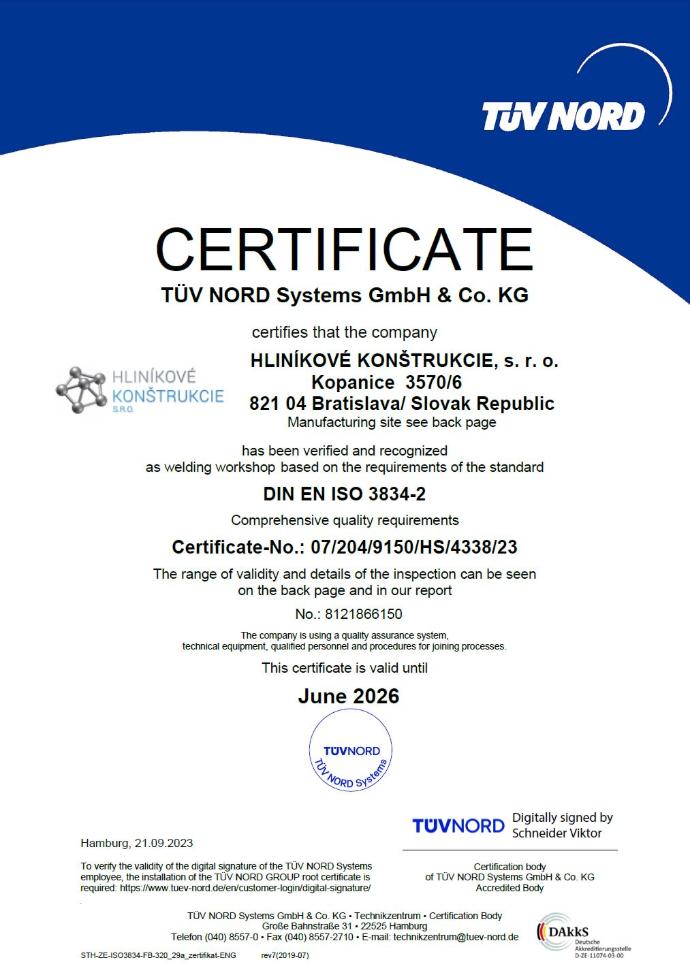

Certificates
