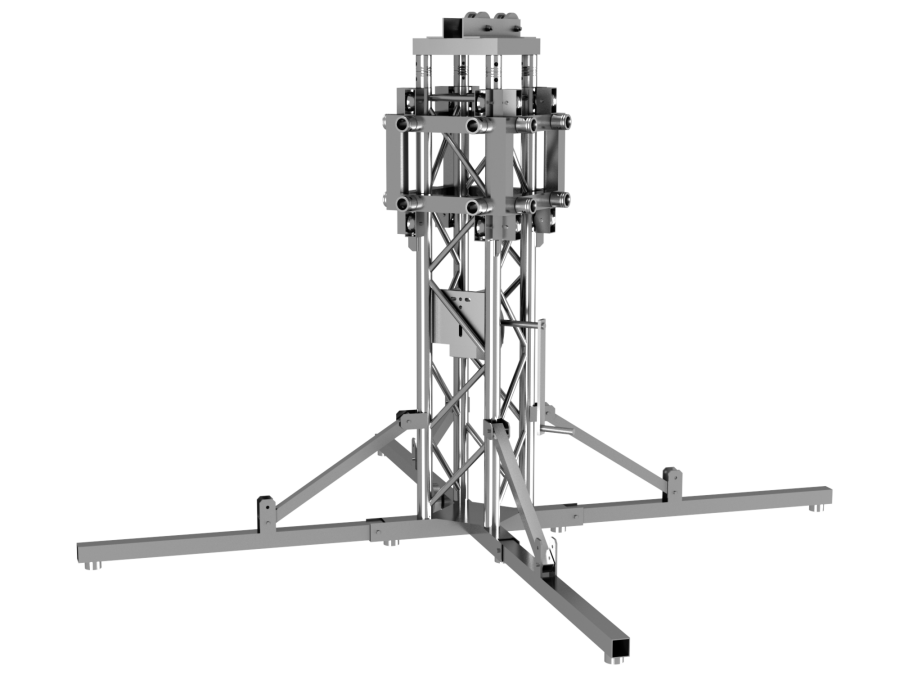

Tower 05 set

https://www.truss.sk/web/image/product.template/15699/image_1920?unique=605a2ac

Light duty tower version. Max.lifting height 6,5m / 500kg

Not Available For Sale

    This combination does not exist.

    Technical Specification

    Light duty tower version for smaller set ups and very easy to use. It is made of quicklock line HT34 products and it comes equipped with handwinch, steel rope and outriggers. Max. lifting height 6.5m (21.33ft) with the possibility to lift loads of 500Kg (1100lbs).

    Specifications TOWER 05 set

    ​​​​SPECIFICATIONS


    Self weight

    100kg

    Height

    6,5 m

    Load capacity

    500kg





    MAST SECTION HT34


    Main Tubes

    50x3mm

    Braces

    20x2mm

    Alloy

    EN-AW 6082 T6

    DOWNLOAD


    TAF TOWER 05 set



    PART LIST


    Tower Set 05

    1 pcs

     tower 05 base plate

     tower 05 sleeve block

     tower 05 top section

     tower 05 handwinch

     TT HS

    HT34-250

    2 pcs

    TT SH

    1 pcs




    Transportation Data

    Total weight: 100 kg
