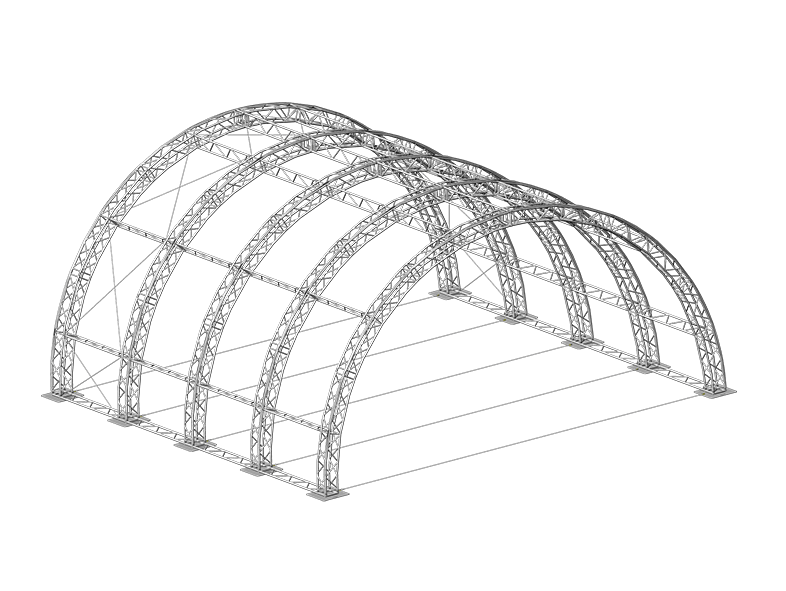

ROOF 12x12x6 ARCH (TAF)
Roof 12x12x6m can bear up to 10000kg and covers the stage 11x11m size
Technical Specification
Arch roofs are very popular systems in rental business. TAF arch roof 12x12x6m (41x41x21.98ft) can bear up to 10000 kg (22046lb) and covers the stage of 11x11m size. The overall design of the roof is ready for accommodatodating as many lights and sound systems as you need
| SPECIFICATIONS | |
Max. dimensions | 12,5x12,5 m |
Max. stage size | 11x11 m |
Max. clearance | 4,6 m |
Max. height | 6,07 m |
Max. load bearing capacity | 10 000 kg |
Total weight of construction | 2150 kg |
LOADING CAPACITY | |
Max.Load Bearing Capacity | 2150 kg |
First Horizontal Beam | kg/m |
Second Horizontal Beam | kg/m |
Third Horizontal Beam | kg/m |
Rear Horizontal Beam | kg/m |
Side Horizontal Beams | kg/m |
ROOF DIMENSIONS | | |
Stage size | 11 000x11 000 mm | |
Inside width | A | mm |
Overall width | B | mm |
Inside depth | C | mm |
Owerall depth | D | mm |
Clearance | E | max 4600 mm |
Height | F | mm |
