Roof RST - 4x4 (TAF)

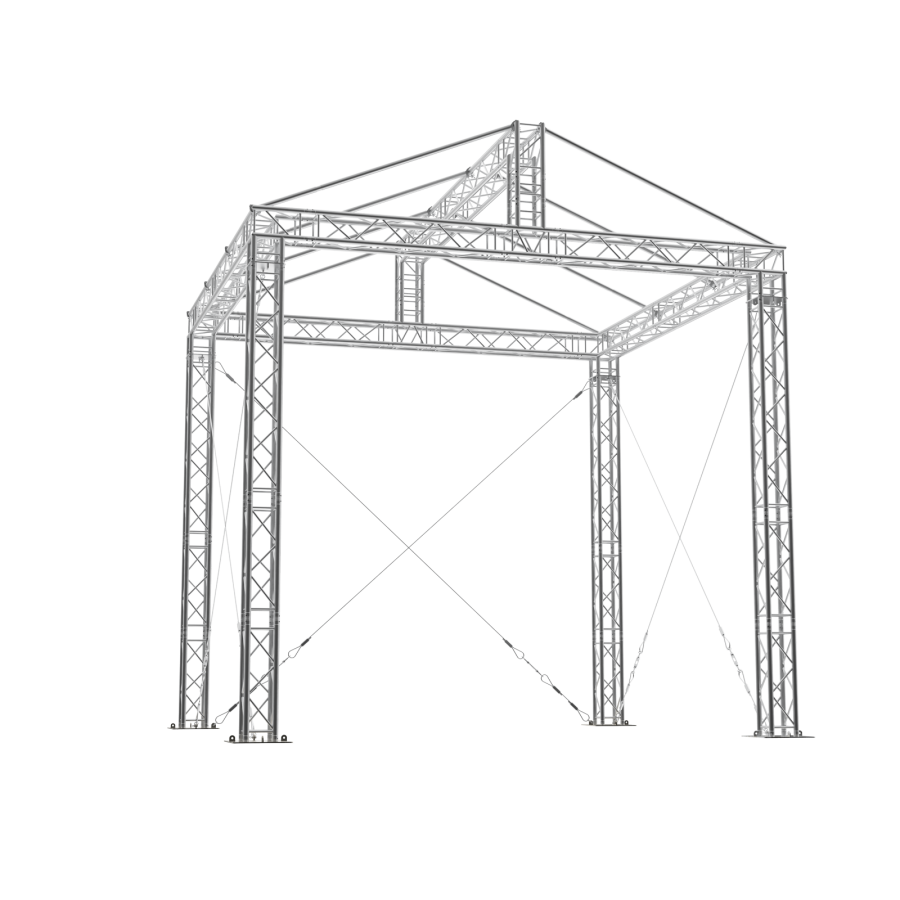

Gable roof from standart truss pieces. Stage size 4x4m

Not Available For Sale

    This combination does not exist.

    Technical Specification

    Using standard FT34 truss line to built safe and secure roof system is a big advantage for many smaller scale events.
    This roof can accommodate stage size of 4 x 4 m. Its clearance is 4,2m. The gable roof can be installed both with the top cover from PVC only or including the standard side canopies as well.
    The top canopy support system is created by four 50 x 2 mm single tubes per side of the roof perfectly spaced 1,45 m apart form each other. These are securely hooked to the main support grid of the roof by side slim clamps 8037.

    The horizontal beams are able to carry 180 kg/m, which makes the max. loading capacity of the roof 3708 kg. The operational wind limit for using the roof system with the side canopies on all three sides is 15 m/s (33 mph).
    Specifications ROOF RST 6x4


    Max. dimensions

    5x4,5 m

    Max. stage size

    4x4 m

    Max. clearance

    4,22 m

    Max. height

    5,47 m

    Max. load bearing capacity

    3708 kg

    Total weight of construction

    478 kg


    Max.Load Bearing Capacity

    3708 kg

    Front Horizontal Beam

    180 kg/m

    Rear Horizontal Beam

    180 kg/m

    Side Horizontal Beams

    180 kg/m


    TAF Assembly Manual RST 4x4

    TAF Truss Manual EN-CZ

    TAF Roof Component Dimensional Layout RST 4x4


    Stage size

    4000x4000 mm

    Inside width


    4420 mm

    Overall width


    5000 mm

    Inside depth


    3920 mm

    Owerall depth


    4500 mm



    4220 mm



    5470 mm

    Used Truss

    FT34 truss line standard products are mainly used for assembly of RST roofs. It is a box truss with 290 x 290 mm (12 in x 12 in) outside dimensions, main pipe Ø 50 x 2 mm (2 in x 0.08 in), braces Ø 20 x 2 mm (0.8 in x 0.08 in). The alloy used as material for the pipes is EN AW-6082 T6.


    Wind Management

    Wind resistence is calculated with 3 side mesh canopies applied to the structure (2 side canopies and one rear canopy). The three roof walls carrying canopies must be secured by guy wire cross bracing at all times with min. loading capacity 1000 kg (2205 lb).

    In service max. windspeed - 15 m/s - 54 km/h - 33 mph

    Out of service max. windspeed - 28 m/s - 101 km/h - 62 mph



    Option 1 - 400 kg / 882 lb ballast underneath each tower base = total of 1600 kg / 3527 lb

    Option 2 - 350 kg / 772 lb ballasts in the 3.5 m (11.5 ft) range from each tower leg attached to the structure by guy wires following the layout in static calculation.


    Canopy and Side Walls

    Top canopy is available standardly in silver grey and black color. The material used is SIO-LINE B 8000 with weight of 630 g/m2.

    The side walls are covered by air permeable mesh canopies in black.


    Transportation Data

    Total weight: 515 kg (1135 lb)

    Transport volume: 5.5 m3 / 194 cu ft (max. length 2.5 m / 8.2 ft)

    All truss segments are packed in brown carton boxes for better handling and protection during transport.
