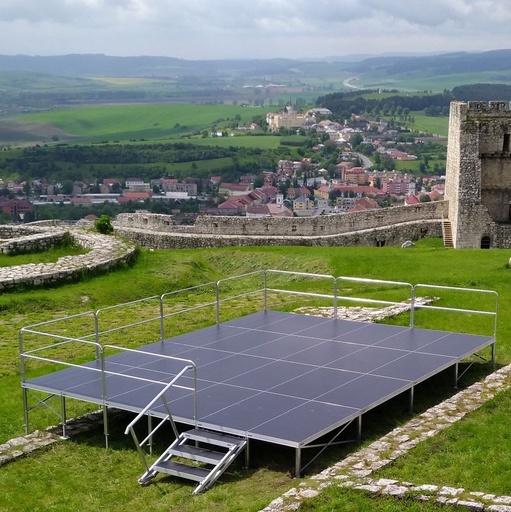

STAGE system 8x6m TS3

https://www.tomkostage.com/web/image/product.template/15694/image_1920?unique=e938f05

Stage for the exterior - stage assembly from the standart decks 2x1m

Not Available For Sale

    This combination does not exist.

    Technical Specification

    - dimensions : 8x6 m
    - weight 2x1 deck : 31 kg
    - loading capacity: 750 kg/m²
    - TUV Nord Certification
    - plywood board:  12 mm thick (waterproof, anti-slip surface)
    - aluminium frame: 87 mm high (hardened aluminium)
    - for indoor and outdoor use, adjustable leveling foot


    TOMKOstage - certified stage for professionals.

    TOMKOstage system is easy modular system that allows you to create the stage according to your specific demands. The system is outstanding for its simplicity – stage decks don’t have any mechanics as levelers or drawbars that could break down. We can say that TOMKOstage deck is kind of indestructible since there is nothing to it that could break down.

    TOMKOstage deck consists of high-quality 12mm thick plywood board and hardened aluminium frame with tongue and groove system for secure connection of the decks between each other. Once the tongue is hooked to the groove there is no possibility of deflection between the decks even if one is severely loaded and the other is not.

    The surface treatment of the plywood board allows the deck to withstand even adverse weather conditions such as intensive sunshine or rain. It is waterproof, anti-scratch and anti-slip. The decks are reinforced by aluminium stiffener that supports entire length of the board.

    Decks are joined together by a stage leg. One leg can connect up to 4 decks. This minimizes the number of legs needed to assemble the stage.  Less legs means less storage room and less amount and weight for transporting. It also helps to save the time of the set up. Another benefit of this system is that the leg is always placed under the frame of the stage not under the plywood board.  So even when the stage is bearing a significant load the board would not get damaged by being pressed against the aluminium edge of the leg.


    When producing an atypical part in non-standard dimensions due to a small number of parts, we apply a 10% price surcharge to the price of the product.


    The carrying capacity of the Tomkostage TS3 is well illustrated by the fact that the Chevrolet Monster Truck off-road vehicle weighing almost 5 tons was heavier than the nominal carrying capacity of the stage, yet it passed the test without damage or deformation.


    Specifications STAGE 8x6m

    ​​​​SPECIFICATIONS


    Self weight

    cca 950kg

    Height

    0,8 m

    Load capacity

    750 kg/m²


    SECTION


    Aluminium frame

    87 mm high

    Plywood board

    12mm thick

    Alloy

    EN-AW 6082 T6

    DOWNLOAD


    DOP declaration of preformance TS3


    PART LIST


    1013 Stage deck 2x1m

    24 pcs

    0990 TS3 Leg 0,713m

    35 pcs

    0382 leveling Base Jack 0,3m

    35 pcs

    1012 TS3 Adapter for stairs (set)

    1 pcs

    1007 TS3 4-step Folding Stairs

    1 pcs

    1000 TS3 Rails for 4-step Foldable Stairs

    1 pcs




    STAGE TS3 - Main advantages

    REDUCING THE NUMBER OF LEGS

    Connecting up to 4 stage decks with a single leg. Stage meets legs only through the aluminium frame so the plywood board is protected against damage.

    LEG IS A MULTIPURPOSE COMPONENT

    The leg can be used for attaching stairs, safety rails, and bracing to the stage.

    DIVERSITY OF STAGE SHAPES

    Variety of shapes and tailored solutions of the stage deck.

    Assembly Guide for TOMKO STAGE

     This assembly instruction for a standard

    modular stage 2x4m with accessories.

    Assembly time < 15min / 2 person.
